Below is a brief sample set of our manufacturing and production capabilities.  In addition to these generic workgroups, we can and have also developed bespoke equipment and processes, capable of manufacturing specialized components comprised of standard or exotic materials.

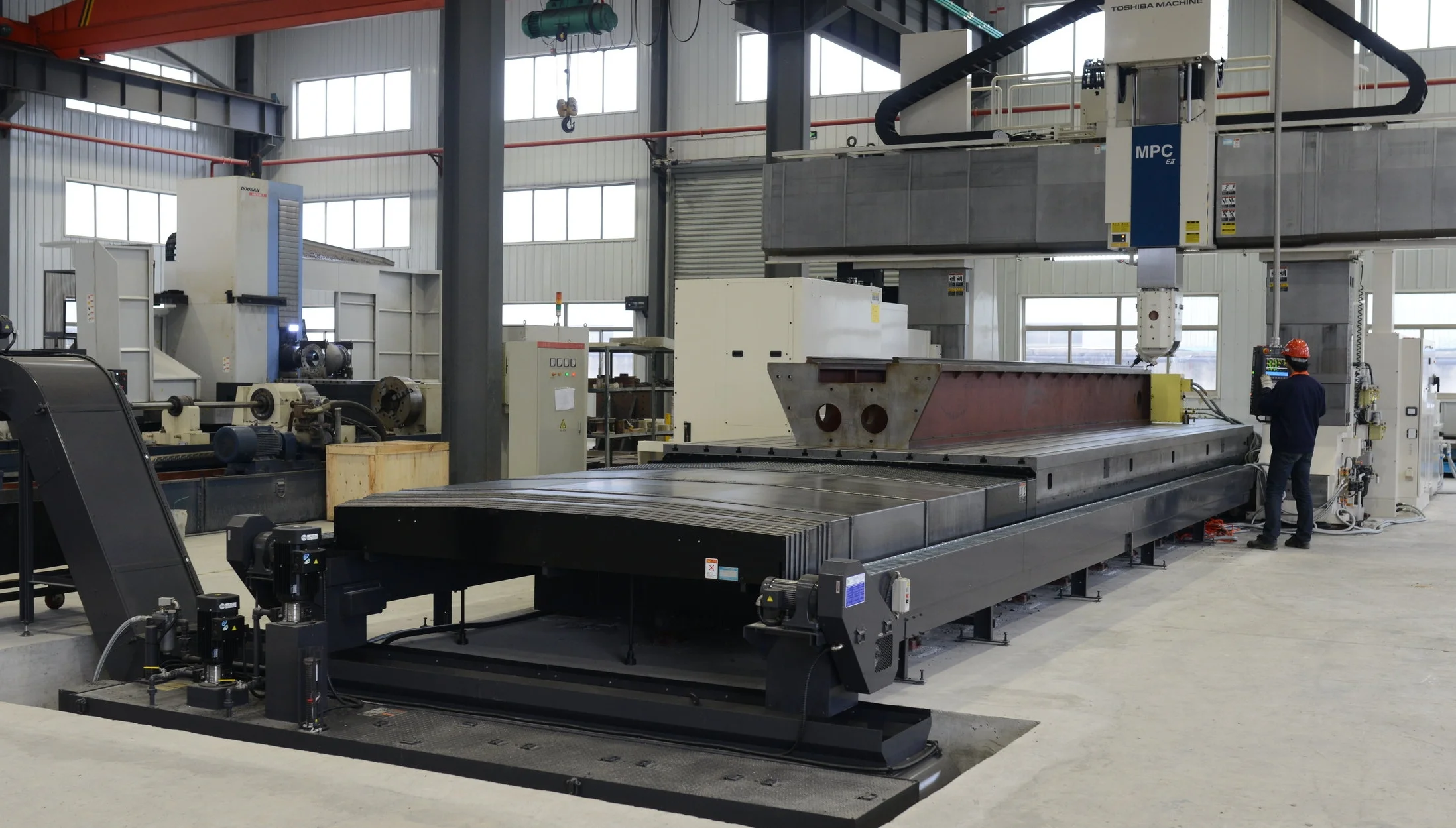

gantry machining

  • Table Size: Up to 106" x 315"
  • Controlled Axes: 5-sided, 4-axes (X, Y, Z, and W)
  • Maximum Travel
    • X: 355"
    • Y: 154"
    • Z: 90"
    • W: 39"

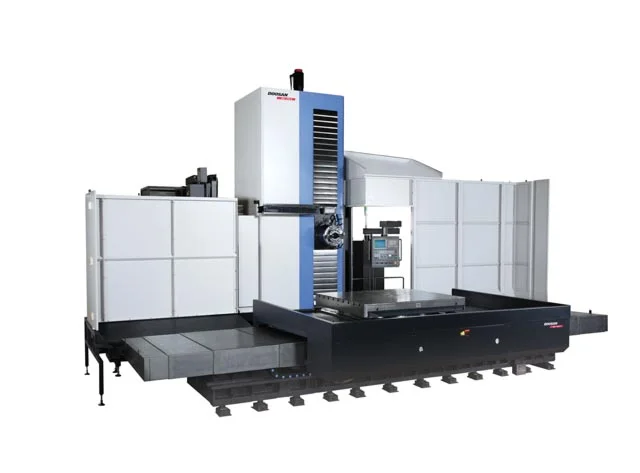

horizontal machining

  • Table Size: Up to 71" x 87"
  • Controlled Axes: 6 (X, Y, Z, W, A, and B)
  • Maximum Travel
    • X: 158"
    • Y: 98"
    • Z: 90"
    • W: 28"


vertical MACHINING

  • Table Size: Up to 39" x 82"
  • Controlled Axes: 4 (X, Y, Z, and A)

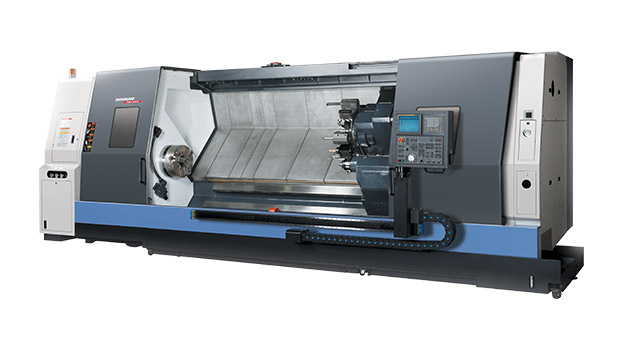

turning - horizontal

  • Chuck Size: From 6" to 31"
  • Distance Between Centers: From 30" to 197"
  • Spindle Bore: From 3" to 12.5"

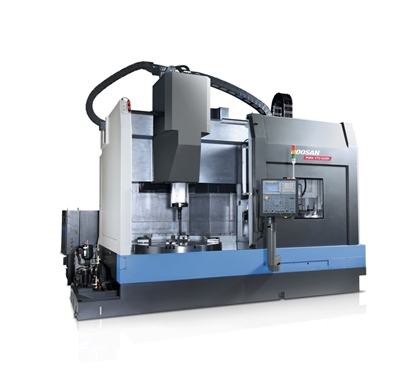

turning - vertical

  • Diameter: Up to 79"
  • Height: Up to 61"
  • Travel
    • X: 5"
    • X: 63"
    • Z: 38"
    • W: 31"


honing

  • Length: Up to 500"
  • ID: From 2" to 13"
  • Up to 16 Ra surface finish


Deep Hole Gundrilling

  • On-center, off-center, angle, and blind holes
  • Diameter: From 0.10" to 0.75"
  • Length: Up to 240"
  • Focused on Nickel alloys (ie, Inconel 718) and stainless steels (ie, 13-Chrome)

pull boring

  • Length: Up to 500"
  • ID: From 2" to 13"

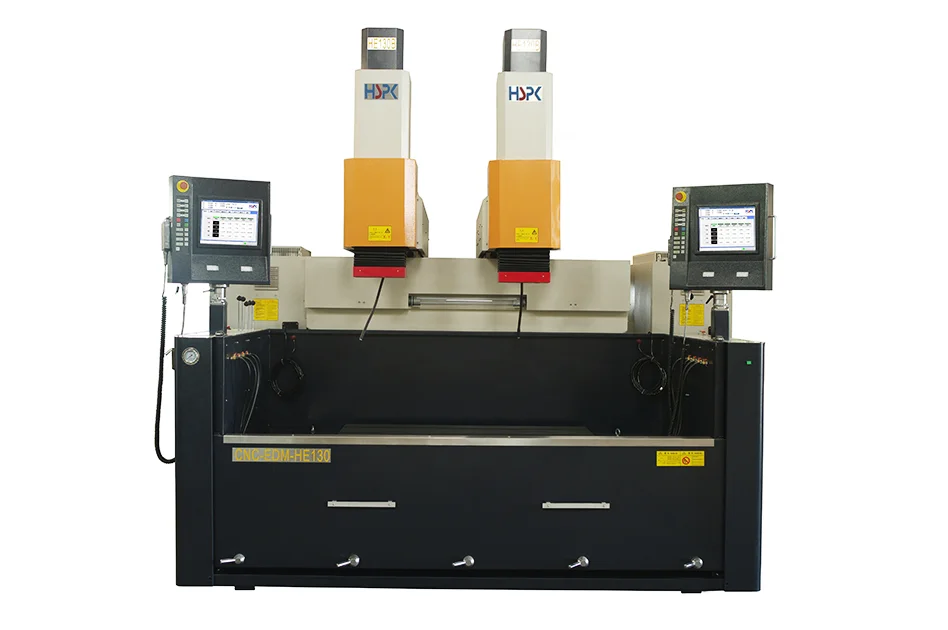

ELECTRIC DISCHARGE MACHINING

  • Table Size: Up to 55" x 28"
  • Controlled Axes: 3 (X, Y, and Z)
  • Maximum Travel
    • X: 31"
    • Y: 24"
    • Z: 16"

Robotic welding

  • Increases welding speed and improves repeatability
  • MIG and TIG arc welding processes


hvof LASER coating

  • HVOF (High Velocity Oxy-Fuel) spray carbides, including Chromium Carbide, Tungsten Carbide, Stellite, etc.
  • Coatings matched to base materials for proper coefficient of thermal expansion





Coordinate measuring

  • High speed tactile scanning for dimensional inspection
  • Utilization of technology to augment and ensure absolute quality production
